Carbide Drill with Internal Coolant Hole - 5xD
- Home
- Products
- End Mills
- Special Purpose End Mill
- Carbide Drill with Internal Coolant Hole - 5xD
Product Description
Carbide drills with internal coolant hole - 5xD excel in performance with capabilities for deep hole drilling, maintaining accuracy and dimensional integrity throughout the increased length, high productivity enabled by internal coolant for higher cutting speeds and feed rates, precision and accuracy ensured by solid carbide construction and optimized geometries, and extended tool life through effective coolant delivery that reduces heat buildup and thermal stress, suitable for drilling a wide range of materials including steel, non-ferrous metals, high-temperature alloys, and composite materials in automotive, aerospace, oil and gas, and general engineering applications requiring deep hole drilling.
Product specifications

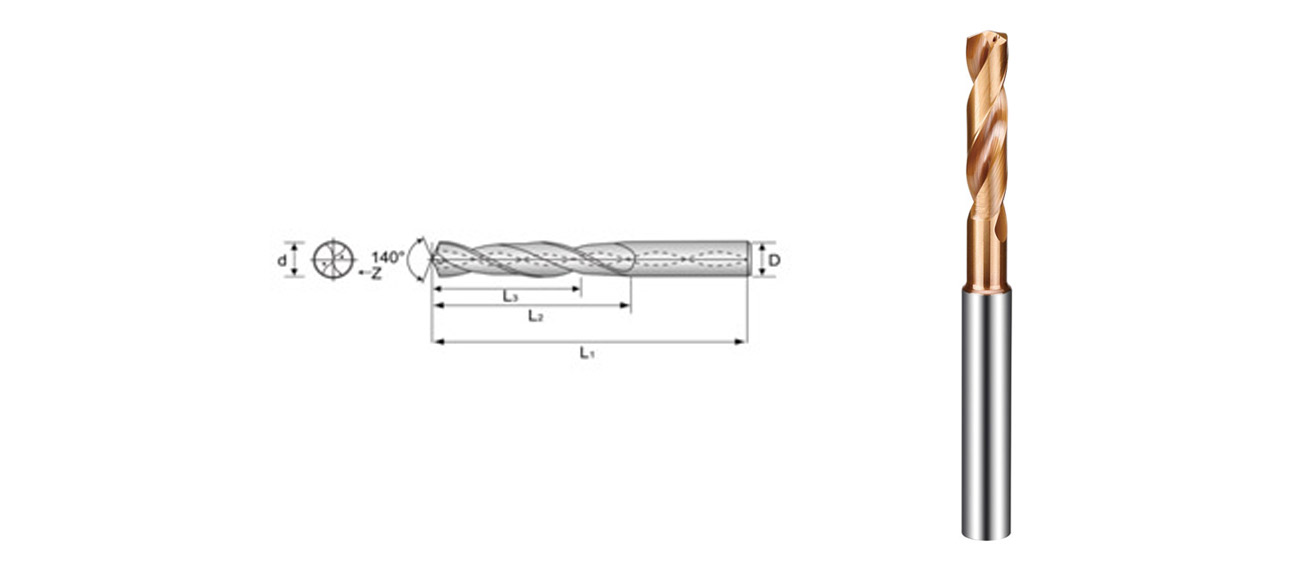

Type No. | Drill Dia. | Flute Length | OAL | Shank Dia. |
---|---|---|---|---|
SDH5-030 | 3.0 | 28 | 66 | 6 |
SDH5-031 | 3.1 | 28 | 66 | 6 |
SDH5-032 | 3.2 | 28 | 66 | 6 |
SDH5-033 | 3.3 | 28 | 66 | 6 |
SDH5-034 | 3.4 | 28 | 66 | 6 |
SDH5-035 | 3.5 | 28 | 66 | 6 |
SDH5-036 | 3.6 | 28 | 66 | 6 |
SDH5-037 | 3.7 | 28 | 66 | 6 |
SDH5-038 | 3.8 | 36 | 74 | 6 |
SDH5-039 | 3.9 | 36 | 74 | 6 |
SDH5-040 | 4.0 | 36 | 74 | 6 |
SDH5-041 | 4.1 | 36 | 74 | 6 |
SDH5-042 | 4.2 | 36 | 74 | 6 |
SDH5-043 | 4.3 | 36 | 74 | 6 |
SDH5-044 | 4.4 | 36 | 74 | 6 |
SDH5-045 | 4.5 | 36 | 74 | 6 |
SDH5-046 | 4.6 | 36 | 74 | 6 |
SDH5-047 | 4.7 | 36 | 74 | 6 |
SDH5-048 | 4.8 | 44 | 82 | 6 |
SDH5-049 | 4.9 | 44 | 82 | 6 |
SDH5-050 | 5.0 | 44 | 82 | 6 |
SDH5-051 | 5.1 | 44 | 82 | 6 |
SDH5-052 | 5.2 | 44 | 82 | 6 |
SDH5-053 | 5.3 | 44 | 82 | 6 |
SDH5-054 | 5.4 | 44 | 82 | 6 |
SDH5-055 | 5.5 | 44 | 82 | 6 |
SDH5-056 | 5.6 | 44 | 82 | 6 |
SDH5-057 | 5.7 | 44 | 82 | 6 |
SDH5-058 | 5.8 | 44 | 82 | 6 |
SDH5-059 | 5.9 | 44 | 82 | 6 |
SDH5-060 | 6.0 | 44 | 82 | 6 |
SDH5-061 | 6.1 | 53 | 91 | 8 |
SDH5-062 | 6.2 | 53 | 91 | 8 |
SDH5-063 | 6.3 | 53 | 91 | 8 |
SDH5-064 | 6.4 | 53 | 91 | 8 |
SDH5-065 | 6.5 | 53 | 91 | 8 |
SDH5-066 | 6.6 | 53 | 91 | 8 |
SDH5-067 | 6.7 | 53 | 91 | 8 |
SDH5-068 | 6.8 | 53 | 91 | 8 |
SDH5-069 | 6.9 | 53 | 91 | 8 |
SDH5-070 | 7.0 | 53 | 91 | 8 |
SDH5-071 | 7.1 | 53 | 91 | 8 |
SDH5-072 | 7.2 | 53 | 91 | 8 |
SDH5-073 | 7.3 | 53 | 91 | 8 |
SDH5-074 | 7.4 | 53 | 91 | 8 |
SDH5-075 | 7.5 | 53 | 91 | 8 |
SDH5-076 | 7.6 | 53 | 91 | 8 |
SDH5-077 | 7.7 | 53 | 91 | 8 |
SDH5-078 | 7.8 | 53 | 91 | 8 |
SDH5-079 | 7.9 | 53 | 91 | 8 |
SDH5-080 | 8.0 | 53 | 91 | 8 |
SDH5-081 | 8.1 | 61 | 103 | 10 |
SDH5-082 | 8.2 | 61 | 103 | 10 |
SDH5-083 | 8.3 | 61 | 103 | 10 |
SDH5-084 | 8.4 | 61 | 103 | 10 |
SDH5-085 | 8.5 | 61 | 103 | 10 |
SDH5-086 | 8.6 | 61 | 103 | 10 |
SDH5-087 | 8.7 | 61 | 103 | 10 |
SDH5-088 | 8.8 | 61 | 103 | 10 |
SDH5-089 | 8.9 | 61 | 103 | 10 |
SDH5-090 | 9.0 | 61 | 103 | 10 |
SDH5-091 | 9.1 | 61 | 103 | 10 |
SDH5-092 | 9.2 | 61 | 103 | 10 |
SDH5-093 | 9.3 | 61 | 103 | 10 |
SDH5-094 | 9.4 | 61 | 103 | 10 |
SDH5-095 | 9.5 | 61 | 103 | 10 |
SDH5-096 | 9.6 | 61 | 103 | 10 |
SDH5-097 | 9.7 | 61 | 103 | 10 |
SDH5-098 | 9.8 | 61 | 103 | 10 |
SDH5-099 | 9.9 | 61 | 103 | 10 |
SDH5-100 | 10.0 | 61 | 103 | 10 |
SDH5-101 | 10.1 | 71 | 118 | 12 |
SDH5-102 | 10.2 | 71 | 118 | 12 |
SDH5-103 | 10.3 | 71 | 118 | 12 |
SDH5-104 | 10.4 | 71 | 118 | 12 |
SDH5-105 | 10.5 | 71 | 118 | 12 |
SDH5-106 | 10.6 | 71 | 118 | 12 |
SDH5-107 | 10.7 | 71 | 118 | 12 |
SDH5-108 | 10.8 | 71 | 118 | 12 |
SDH5-109 | 10.9 | 71 | 118 | 12 |
SDH5-110 | 11.0 | 71 | 118 | 12 |
SDH5-111 | 11.1 | 71 | 118 | 12 |
SDH5-112 | 11.2 | 71 | 118 | 12 |
SDH5-113 | 11.3 | 71 | 118 | 12 |
SDH5-114 | 11.4 | 71 | 118 | 12 |
SDH5-115 | 11.5 | 71 | 118 | 12 |
SDH5-116 | 11.6 | 71 | 118 | 12 |
SDH5-117 | 11.7 | 71 | 118 | 12 |
SDH5-118 | 11.8 | 71 | 118 | 12 |
SDH5-119 | 11.9 | 71 | 118 | 12 |
SDH5-120 | 12.0 | 71 | 118 | 12 |
