Micro Grain Carbide, Long-neck, Corner-radius, 2-flute, End Mills
HRMAL Material
HRM Material
Inquiry Item
Product Description
The micro grain carbide, long-neck, corner-radius, 2-flute end mills ensure high precision and accuracy in machining operations, achieve excellent surface finishes, especially in contouring and finishing applications, and enable deeper machining without sacrificing rigidity, which is crucial for maintaining dimensional accuracy. They are suitable for machining a variety of materials, including hardened steels, stainless steels, titanium alloys, cast iron, and non-ferrous metals such as aluminum and copper alloys. They are particularly effective for machining hardened materials prone to quick tool wear.
Product specifications
HRC55

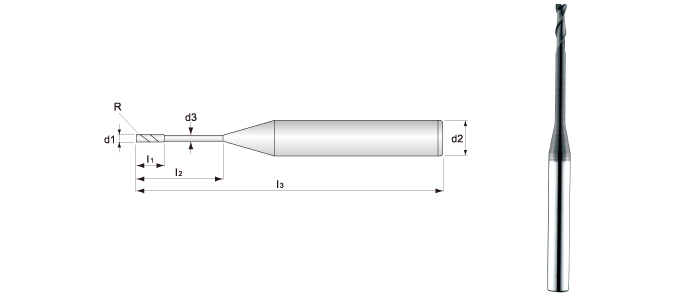

| Type No. | Diameter | Neck Dia. | Corner R | Flute Length | Effective Length | OAL | Shank Dia. |
|---|---|---|---|---|---|---|---|
| HRMAL1006R | 1.0 | 0.95 | 0.2 | 1.5 | 6 | 50 | 4 |
| HRMAL1008R | 1.0 | 0.95 | 0.2 | 1.5 | 8 | 50 | 4 |
| HRMAL1010R | 1.0 | 0.95 | 0.2 | 1.5 | 10 | 50 | 4 |
| HRMAL1012R | 1.0 | 0.95 | 0.2 | 1.5 | 12 | 50 | 4 |
| HRMAL1508R | 1.5 | 1.44 | 0.2 | 2.0 | 8 | 50 | 4 |
| HRMAL1510R | 1.5 | 1.44 | 0.2 | 2.0 | 10 | 50 | 4 |
| HRMAL1512R | 1.5 | 1.44 | 0.2 | 2.0 | 12 | 50 | 4 |
| HRMAL1516R | 1.5 | 1.44 | 0.2 | 2.0 | 16 | 50 | 4 |
| HRMAL2008R | 2.0 | 1.92 | 0.2 | 3.0 | 8 | 50 | 4 |
| HRMAL2010R | 2.0 | 1.92 | 0.2 | 3.0 | 10 | 50 | 4 |
| HRMAL2012R | 2.0 | 1.92 | 0.2 | 3.0 | 12 | 50 | 4 |
| HRMAL2016R | 2.0 | 1.92 | 0.2 | 3.0 | 16 | 50 | 4 |
| HRMAL2020R | 2.0 | 1.92 | 0.2 | 3.0 | 20 | 50 | 4 |
| HRMAL2510R | 2.5 | 2.4 | 0.2 | 3.0 | 10 | 50 | 4 |
| HRMAL2512R | 2.5 | 2.4 | 0.2 | 3.0 | 12 | 50 | 4 |
| HRMAL2516R | 2.5 | 2.4 | 0.2 | 3.0 | 16 | 50 | 4 |
| HRMAL2520R | 2.5 | 2.4 | 0.2 | 3.0 | 20 | 50 | 4 |
| HRMAL3010R | 3.0 | 2.9 | 0.2 | 4.0 | 10 | 50 | 6 |
| HRMAL3012R | 3.0 | 2.9 | 0.2 | 4.0 | 12 | 50 | 6 |
| HRMAL3016R | 3.0 | 2.9 | 0.2 | 4.0 | 16 | 50 | 6 |
| HRMAL3020R | 3.0 | 2.9 | 0.2 | 4.0 | 20 | 60 | 6 |
| HRMAL3025R | 3.0 | 2.9 | 0.2 | 4.0 | 25 | 60 | 6 |
HRC60
| Type No. | Diameter | Neck Dia. | Corner R | Flute Length | Effective Length | OAL | Shank Dia. |
|---|---|---|---|---|---|---|---|
| HRM1006R | 1.0 | 0.95 | 0.2 | 1.5 | 6 | 50 | 4 |
| HRM1008R | 1.0 | 0.95 | 0.2 | 1.5 | 8 | 50 | 4 |
| HRM1010R | 1.0 | 0.95 | 0.2 | 1.5 | 10 | 50 | 4 |
| HRM1012R | 1.0 | 0.95 | 0.2 | 1.5 | 12 | 50 | 4 |
| HRM1508R | 1.5 | 1.44 | 0.2 | 2.0 | 8 | 50 | 4 |
| HRM1510R | 1.5 | 1.44 | 0.2 | 2.0 | 10 | 50 | 4 |
| HRM1512R | 1.5 | 1.44 | 0.2 | 2.0 | 12 | 50 | 4 |
| HRM1516R | 1.5 | 1.44 | 0.2 | 2.0 | 16 | 50 | 4 |
| HRM2008R | 2.0 | 1.92 | 0.2 | 3.0 | 8 | 50 | 4 |
| HRM2010R | 2.0 | 1.92 | 0.2 | 3.0 | 10 | 50 | 4 |
| HRM2012R | 2.0 | 1.92 | 0.2 | 3.0 | 12 | 50 | 4 |
| HRM2016R | 2.0 | 1.92 | 0.2 | 3.0 | 16 | 50 | 4 |
| HRM2020R | 2.0 | 1.92 | 0.2 | 3.0 | 20 | 50 | 4 |
| HRM2510R | 2.5 | 2.4 | 0.2 | 3.0 | 10 | 50 | 4 |
| HRM2512R | 2.5 | 2.4 | 0.2 | 3.0 | 12 | 50 | 4 |
| HRM2516R | 2.5 | 2.4 | 0.2 | 3.0 | 16 | 50 | 4 |
| HRM2520R | 2.5 | 2.4 | 0.2 | 3.0 | 20 | 50 | 4 |
| HRM3010R | 3.0 | 2.9 | 0.2 | 4.0 | 10 | 50 | 6 |
| HRM3012R | 3.0 | 2.9 | 0.2 | 4.0 | 12 | 50 | 6 |
| HRM3016R | 3.0 | 2.9 | 0.2 | 4.0 | 16 | 50 | 6 |
| HRM3020R | 3.0 | 2.9 | 0.2 | 4.0 | 20 | 60 | 6 |
| HRM3025R | 3.0 | 2.9 | 0.2 | 4.0 | 25 | 60 | 6 |
